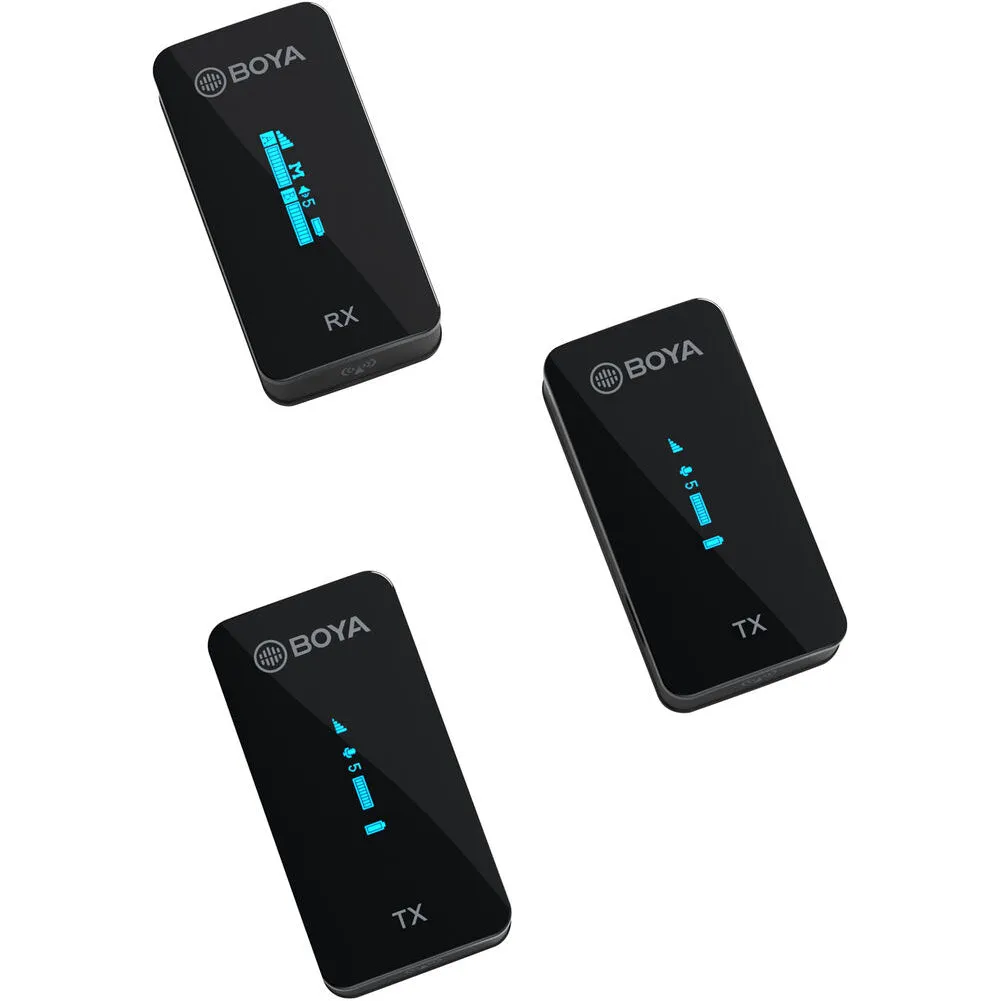

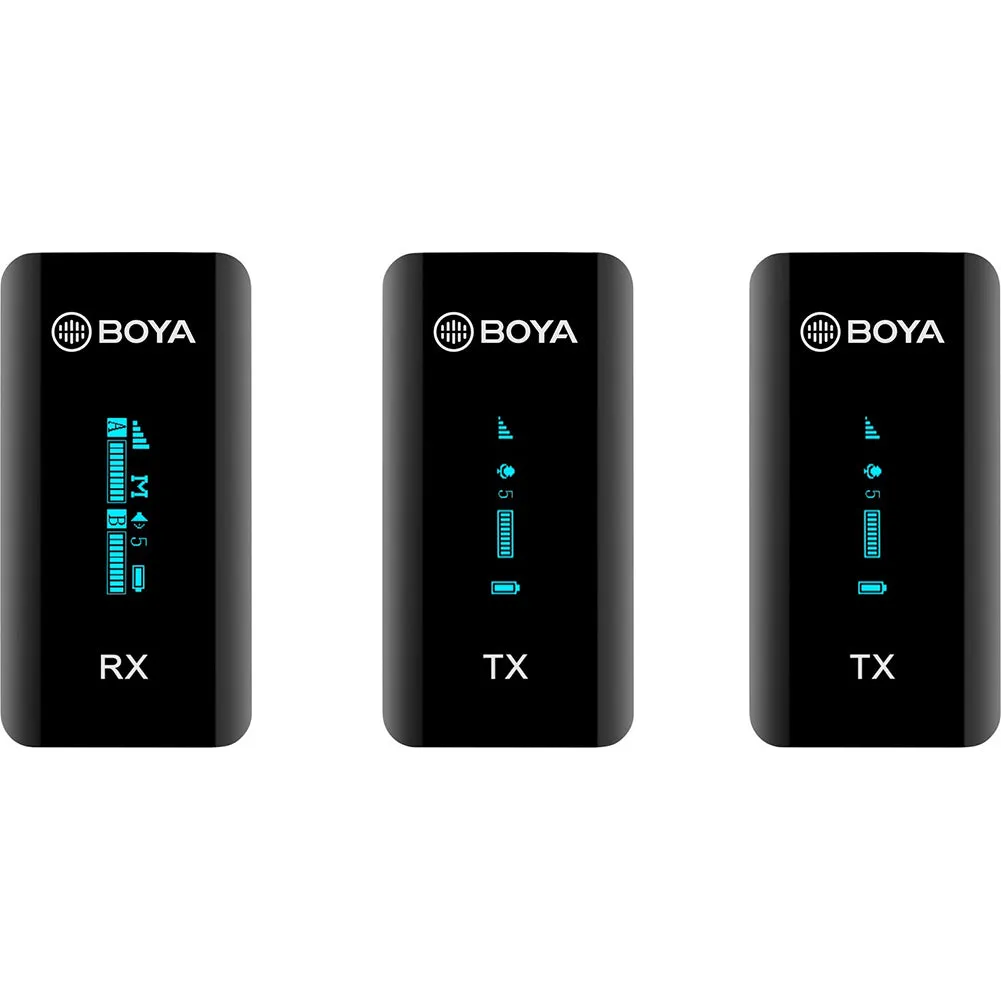

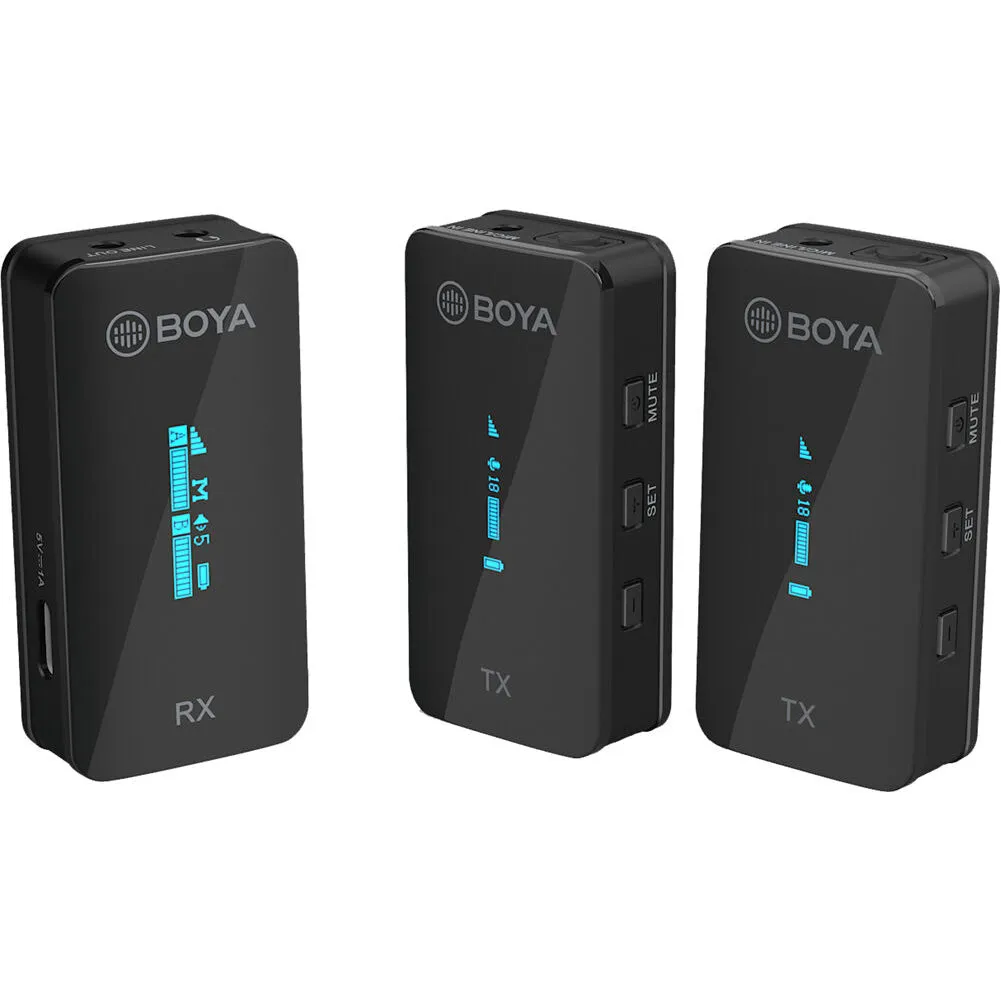

The BOYA BY-XM6-S2, a 2.4GHz dual-channel wireless microphone system, consists of two transmitters and one receiver. It’s a perfect sound capturing and delivering solution for two-person vlog, YouTube video, live streaming, interview, recording, etc.
Advanced Technology for Stable Signal Transmission
The BY-XM6 S2 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S2 avoid the disturbed hop frequency parts automatically to realise stable signal transmission in the range of up to 100m (328ft).
Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S2 captures and delivers Hi-fi and low-noise audio.
Ultra-versatile & Ease-to-use Wireless Microphone Kit
With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work with your DSLR or mirrorless camera, smartphone and computer. When you record two sound sources simultaneously, BY-XM6 S2 will be your best choice.
Features
- Ideal for two-person vlog, YouTube video, live streaming, interview, recording, etc.
- Compatible with DSLR, mirrorless camera, smartphone and computer devices.
- 2.4GHz wireless dual channel signal transmission technology.
- Hi-Fi and low-noise audio processing and delivering system.
- Built with easy-to read, vivid, and informative OLED display.
- Built-in omnidirectional microphone and lavalier microphones on transmitter.
- Headphone output jack on receiver for real-time monitoring.
- Stereo and mono outputs are available and switchable on receiver.
- Built-in Li-ion batteries for 7h use on transmitter and 6.5h use on receiver.
- Up to 100m (328ft) operation range without obstacles.
Specifications:
Transmitter
Transmission Type |
2.4GHz Digital Frequency |
Modulation |
GFSK |
Operating Range (without obstacle) |
Up to 328ft (100m) |
RF Output Power |
<10mW |
Polar Pattern |
Omnidirectional |
Frequency Response |
50Hz-18KHz |
Maximum SPL |
Built-in Microphone: 120dB SPL |
Lavalier Microphone: 110dB SPL |
|
Sensitivity |
Built-in Microphone: -39dB |
Lavalier Microphone: -39dB |
|
SNR |
> 84dB |
Power Requirements |
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life |
Approx. 7 hours |
Antenna |
PIFA Antenna |
Audio Inputs |
3.5mm TRS MIC/LINE IN Jack or Built-in Microphone |
Weight |
Approx. 32g(1.13oz) |
Dimensions |
62.1×31.6×16.5mm |
Operating Temperature |
–10°C to 50°C |
Storage Temperature |
–20°C to 55°C |
Receiver
Transmission Type |
2.4GHz Digital Frequency |
Modulation |
GFSK |
Operating Range (without obstacle) |
Up to 328ft (100m) |
Audio Output Connector |
3.5mm Headphone Jack |
3.5mm Headphone Jack |
|
Audio Output Level |
–60 dBV to -20dBV |
Power Requirements |
Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life |
Approx. 6.5 hours |
Antenna |
PIFA Antenna |
Weight |
Approx. 32g(1.13oz) |
Dimensions |
62.1×31.6×16.5mm |
Operating Temperature |
–10°C to 50°C |
Storage Temperature |
–20°C to 55°C |
What's Included
1 x BOYA BY-XM6-S2 Ultra-Compact 2.4GHz Dual Channel Wireless Microphone (1xRX & 2xTX)
1x 3.5mm TRS-TRS Audio Cable
1x 3.5mm TRS-TRRS Audio Cable
1x Type-C Cable
